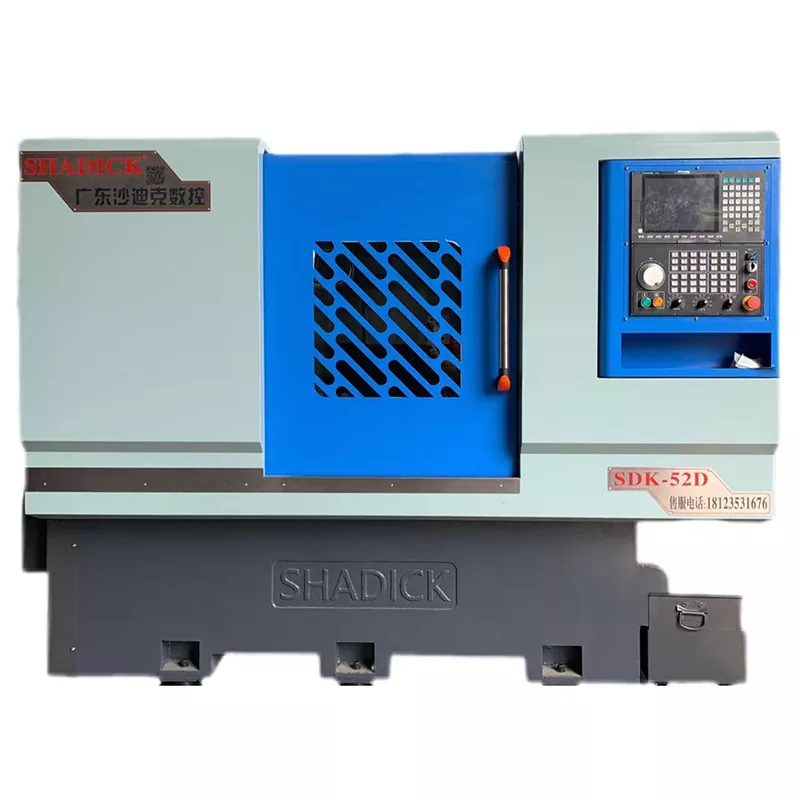

What is the structure of Turret CNC machine tools?

Turret CNC machine tools have become key equipment in the field of precision manufacturing by virtue of their ability to integrate with multiple processes. Its structural design revolves around the three core goals of "efficient tool change, precise positioning, and stable processing". All components work together to achieve the automated production of complex parts.

Basic support: bed and guide rail system

The bed is the basic frame of the turret CNC machine tool. It is mostly made of high-strength cast iron or welded steel structure. The internal stress is eliminated through aging treatment to ensure that it will not deform after long-term use. The guide rail system installed on the bed is divided into linear guide rails and hard rails: linear guide rails have a small friction coefficient and high positioning accuracy, which are suitable for high-speed light cutting; hard rails are quenched and ground, with strong load-bearing capacity, and are suitable for heavy cutting scenarios. The joint surface between the guide rail and the bed needs to be precisely scraped to ensure that the straightness error of the moving parts (such as the workbench) is controlled within 0.01mm/m, laying the foundation for processing accuracy.

Core functions: turret tool holder and spindle unit

The turret tool holder is a landmark component that distinguishes it from ordinary CNC machine tools. It is disc-shaped or square-shaped and can hold 8-24 different tools (such as turning tools, drills, and taps). The servo motor drives the cam or gear mechanism inside to achieve rapid tool rotation. The tool change time is usually between 0.5 and 2seconds, which greatly reduces the time consumption of process conversion. The positioning accuracy of the tool holder is a key indicator. The repeated positioning error of high-end models can be controlled within 0.002mm.

The spindle unit is responsible for driving the workpiece to rotate （lathe） or the tool to rotate （milling machine）. It consists of a spindle motor, a bearing group, and a spindle box. The high-speed spindle uses ceramic bearings or electric spindle technology, and the speed can reach more than 10,000r/min; the low-speed heavy-load spindle is equipped with high-precision rolling bearings to ensure stable output torque. The fixture at the end of the spindle (such as a three-jaw chuck, a collet) must have a strong clamping force to prevent the workpiece from loosening during high-speed rotation.

Drive and transmission: servo system and ball screw

The motion of each axis of the turret CNC machine tool is driven by a servo system, including servo motors, drivers and position feedback devices （such as grating rulers and encoders）. The motor is connected to the moving parts through a ball screw or a gear rack to convert the rotary motion into linear motion. The lead accuracy of the ball screw directly affects the positioning accuracy, and the pitch error of the precision screw can be controlled within 0.005mm/300mm. For the rotary motion of the turret tool holder, an absolute encoder will also be equipped to ensure accurate positioning without returning to zero after power failure.

Control system: CNC unit and operation interface

The CNC unit is the "brain" of the equipment. It uses industrial-grade computer chips and runs a dedicated CNC system (such as Fanuc and Siemens). The system can store thousands of machining programs, support G code and M code programming, and realize complex trajectory control such as linear interpolation and circular interpolation. The operation interface is mostly a combination of touch screen + physical buttons, which is convenient for operators to input parameters, simulate the processing process and monitor the real-time status (such as spindle speed, feed speed, tool life). Some high-end models also support remote diagnosis functions and realize fault warning and program updates through the Internet of Things module.

Auxiliary system: cooling, lubrication and protection

The cooling system accurately delivers cutting fluid to the processing area through spraying or misting, reduces the tool temperature and washes away the chips; the lubrication system uses timed and quantitative oil supply to lubricate the guide rails, lead screws and other moving pairs to reduce wear. The protection system includes a protective cover and a chip removal device: the protective cover prevents the splashing of cutting fluid and the intrusion of dust; the chip conveyor (chain plate type or spiral type) removes chips in time to avoid accumulation affecting processing.

The structural design of the turret CNC machine tool embodies the modern manufacturing concept of "integration, high precision and high efficiency". The coordinated work of various components enables it to complete multiple processes such as turning, milling, drilling and boring on a single device, greatly shortening the production cycle, and becoming a core processing equipment in the fields of aerospace, automobile manufacturing, etc.
